Z5H582

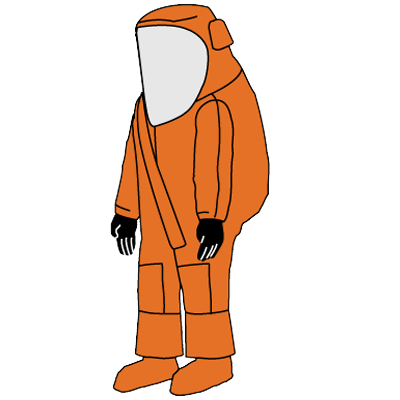

Zytron® 500 Vapor Total Encapsulating Suit. (Hazmat Model)
- › Available Sizes: SM/MD, LG/XL, 2X/3X, 4XL
- › Available Colors: Charcoal, Orange
- › Case Quantity: 1 /cs
- › Case Weight: 20 lbs
- › U.S. MSRP: SM/MD: $1,302.18 | LG/XL: $1,302.18 | 2X/3X: $1,432.40 | 4XL: $1,497.52
Zytron® 500 Vapor Total Encapsulating Suit. (Hazmat Model) Overview
All Zytron® Styles
Zytron® 500
Zytron® 100XP
Zytron® 200
Zytron® 300
Z3H412
Coverall
Z3H414
Coverall
Z3H417
Coverall
Z3H426
Coverall
Z3H426-92
Coverall
Z3H426-92BC
Coverall
Z3H427-92
Splash Protective Coverall
Z3H427-92BC
Splash Protective Coverall
Z3H428
Coverall
Z3H428-92
Splash Protective Coverall
Z3H428-92BC
Splash Protective Coverall
Z3H437-92
Splash Protective Coverall
Z3H448
Coverall
Z3H452-92
Splash Protective Coverall
Z3H452-92BC
Splash Protective Coverall
Z3H456-92
Splash Protective Coverall
Z3H660
Bib Overall
Z3H661
Chaps
Z3H670
Jacket
Z3H670 CP
Jacket
Z3H750
Overhood
Z3H763
Jacket
Z3H763 30
Jacket
Z3H847
Apron
Zytron® 300 FR
Zytron® 500 Vapor Total Encapsulating Suit. (Hazmat Model) Chemical Test Data
Total Chemicals Tested: 264
Sources for all chemical test data are independent laboratories. All tests were performed under laboratory conditions and not under actual use conditions. Tests were performed on material samples, not actual garments. All chemicals tested at 95% and 75° F unless otherwise specified.
All chemical test data shown is “permeation” based on ASTM F739, unless noted as “LIQUID PENETRATION” based on ASTM F903/F1671. Results displayed are in minutes. Select chemicals based on permeation when liquid and vapor protection is required. Select penetration when only liquid protection is required.
| Chemical Name | CAS | Result |
|---|---|---|
| 1,1,1,3,3,3-Hexachloropropane | 3607-78-1 | >480 |
| 1,1,1-Trichloroethane | 71-55-6 | >480 |
| 1,2,-Dichlorobenzene | 95-50-1 | >480 |
| 1,2-Dichloroethane | 107-06-2 | >480 |
| 1,2-Dihydroxyethane | 107-21-1 | >480 |
| 1,2-Epoxy-3-Phenoxypropane | 122-60-1 | >480 |
| 1,3-Butadiene | 106-99-0 | >480 |
| 1,3-Dimethylbenzene | 108-38-3 | >480 |
| 1,4-Aminobiphenyl | 92-67-1 | >480 |
| 1,4-Diaminobenzene | 106-50-3 | >480 |
| 1,6-Diisocyanatohexane | 822-06-0 | >480 |
| 1-Butanol | 71-36-3 | >480 |
| 1-Vinyl-2 pyrrolidinone | 88-12-0 | >480 |
| 2-Aminodiphenylamine (2-ADP) | 534-85-0 | >480 |
| 2-Aminoethanol | 141-43-5 | >480 |
| 2-Butanone | 78-93-3 | >480 |
| 2-Chloropropylene Oxide | 106-89-8 | >480 |
| 2-Mercaptoethanol | 60-24-2 | >480 |
| 2-Propenamide | 79-06-01 | >480 |
| 3-Chloropropene | 107-05-1 | >480 |
| 4-Phenylaniline | 92-67-1 | >480 |
| 4-tert-Butylcatechol | 98-29-3 | >480 |
| Acetic Acid, 99% | 64-19-7 | >480 |
| Acetic Anhydride | 108-24-7 | >480 |
| Acetone | 67-64-1 | >480 |
| Acetonitrile | 75-05-8 | >480 |
| Acrylamide | 79-06-1 | >480 |
| Acrylic Acid | 79-10-7 | >480 |
| Acrylonitrile | 107-13-1 | >480 |
| Allyl Alcohol | 107-18-6 | >480 |
| Allyl Chloride | 107-05-1 | >480 |
| Aluminum potassium sulfate dodecahydrate | 7784-24-9 | >480 |
| Ammonia, gas | 7664-41-7 | >480 |
| Ammonia, liquid (-32°C) | 7664-41-7 | >480 |
| Ammonium Hydroxide, 28% | 1336-21-6 | >480 |
| Aniline | 62-53-3 | >480 |
| Aqua Fortis, 70% | 7697-37-2 | >480 |
| Artic Heating Fuel | Mixture | >480 |
| Azabenzene | 110-86-1 | >480 |
| Basudin, 25% | 333-41-5 | >480 |
| Battery Acid | 7664-93-9 | >480 |
| Benzene | 71-43-2 | >480 |
| Benzyl Chloride | 100-44-7 | >480 |
| Biethylene | 106-99-0 | >480 |
| Bis (2-chloroethyl) Sulfide | 505-60-2 | >480 |
| Bisulfite | 7446-09-5 | >480 |
| Black Liquor | Mixture | >480 |
| Boron Trifluoride Dihydrate | 13319-75-0 | >480 |
| Brenzcatechin | 120-80-9 | >480 |
| Butyl Acetate | 123-86-4 | >480 |
| Butyl acetate >95% LIQUID PENETRATION | 123-86-4 | >60 |
| Butyl Alcohol | 71-36-3 | >480 |
| Carbolic Acid, 43*C | 108-95-2 | >480 |
| Carbon Bisulfide | 75-15-0 | >480 |
| Carbon Disulfide | 75-15-0 | >480 |
| Carbon Tetrachloride, 99.5% | 56-23-5 | >480 |
| Catechol | 120-80-9 | >480 |
| Caustic Soda | 1310-73-2 | >480 |
| Chlorine Dioxide | 10049-04-4 | >480 |
| Chlorine Gas | 7782-50-5 | >480 |
| Chlorine Liquid (-70°C) | 7782-50-5 | >480 |
| Chloroacetic Acid | 79-11-8 | >480 |
| Chloroacetyl Chloride 99% | 79-04-9 | >480 |
| Chloromethane | 74-87-3 | >480 |
| Chlorosulfonic Acid | 7790-94-5 | >480 |
| Chlorovinylarsine Dichloride | 541-25-3 | >480 |
| Chromium Trioxide, 50% | 1333-82-0 | >480 |
| Crude Oil | Mixture | >480 |
| Crude Oil Alaska North Slope | Mixture | >480 |
| Cumene | 98-82-8 | >480 |
| Cumene Hydroperoxide, 80% | 80-15-9 | >480 |
| Cyanoethylene | 107-13-1 | >480 |
| Cyanomethane | 75-05-8 | >480 |
| Cyclohexane | 110-82-7 | >480 |
| Cyclohexanone | 108-94-1 | >480 |
| Cyclohexyl Isocyanate | 3173-53-3 | >480 |
| Diazinon, 25% | 333-41-5 | >480 |
| Dibutyl ether | 142-96-1 | >480 |
| Dibutyl phthalate | 84-74-2 | >480 |
| Dichlorodimethylsilane | 75-78-5 | >480 |
| Dichloromethane | 75-09-2 | >480 |
| Diesel Fuel Ultra Low Sulfur | Mixture | >480 |
| Diethylamine | 109-89-7 | >480 |
| Diethylene Oxide | 123-91-1 | >480 |
| Diethylethanolamine | 100-37-8 | >480 |
| Dimazine | 57-14-7 | >480 |
| Dimethyl-Acetamide | 127-19-5 | >480 |
| Dimethylamine, 40% | 124-40-3 | >480 |
| Dimethyldichlorosilane | 75-78-5 | >480 |
| Dimethylene Oxide | 75-21-8 | >480 |
| Dimethylformamide | 68-12-2 | >480 |
| Dimethylformamide >95% LIQUID PENETRATION | 68-12-2 | >60 |
| Dimethylhydrazine N,N- | 57-14-7 | >480 |
| Dimethyl Ketone | 67-64-1 | >480 |
| Dimethyl Sulfate | 77-78-1 | >480 |
| Dimethyl Sulfide | 75-18-3 | >480 |
| Dipropyl Methane | 142-82-5 | >480 |
| DMAC | 127-19-5 | >480 |
| Dursban 7% | 2921-88-2 | >480 |
| Epichlorohydrin | 106-89-8 | >480 |
| Ethanoic Acid | 64-19-7 | >480 |
| Ethanoic Anhydride | 108-24-7 | >480 |
| Ethanol | 64-17-5 | >480 |
| Ethanolamine | 141-43-5 | >480 |
| Ethenyl Benzene | 100-42-5 | >480 |
| Ethyl-S-Dimethylaminoethyl Methylphosphonothiolate | 50782-69-9 | >480 |
| Ethyl Acetate | 141-78-6 | >480 |
| Ethyl acrylate | 140-88-5 | >480 |
| Ethyl Alcohol | 64-17-5 | >480 |
| Ethyl Benzene | 100-41-4 | >480 |
| Ethyl Chloroformate | 541-41-3 | >480 |
| Ethylene Dichloride | 107-06-2 | >480 |
| Ethylene Glycol | 107-21-1 | >480 |
| Ethylene Oxide | 75-21-8 | >480 |
| Ethyl Ethanoate | 141-78-6 | >480 |
| Ferric Chloride, 50% | 7705-8-0 | >480 |
| Formaldehyde, 37% | 50-00-0 | >480 |
| Formonitrile | 74-90-8 | >480 |
| Fuel H LIQUID PENETRATION | Mixture | >60 |
| Fuel Oil LS | Mixture | >480 |
| Gasoline | 8006-61-9 | >480 |
| Gluteraldehyde, 25% | 111-30-8 | >480 |
| Green Liquor | Mixture | >480 |
| Heptane | 142-82-5 | >480 |
| Hexahydrobenzene | 110-82-7 | >480 |
| Hexamethylene-1,6-diisocyanate | 822-06-0 | >480 |
| Hexane | 110-54-3 | >480 |
| Hydrazine Hydrate (contains 64% hydrazine) | 10217-52-4 | >480 |
| Hydriodic Acid, 47% | 10034-85-2 | >480 |
| Hydriodic acid, 56% | 10034-85-2 | >480 |
| Hydrochloric Acid, 37% | 7647-01-0 | >480 |
| Hydrofluoric Acid 48% | 7664-39-3 | >480 |
| Hydrogen Chloride gas | 7647-01-0 | >480 |
| Hydrogen Cyanide | 74-90-8 | >480 |
| Hydrogen Fluoride Gas 99% | 7664-39-3 | >480 |
| Hydrogen Peroxide, 50% | 7722-84-1 | >480 |
| Hydrogen Sulfide 100% Vapor | 7783-06-4 | >480 |
| Iodomethane | 74-88-4 | >480 |
| Isophorone Diamine {IPDA} | 2855-13-2 | >480 |
| Isopropenyl Benzene | 98-83-9 | >480 |
| Isopropyl Alcohol | 67-63-0 | >480 |
| Isopropyl alcohol >91% LIQUID PENETRATION | 67-63-0 | >60 |
| Isopropylamine | 75-31-0 | >480 |
| Isopropyl Benzene | 98-82-8 | >480 |
| Isopropyl Methanefluorophosphonate | 107-44-8 | >480 |
| Jet Fuel A | Mixture | >480 |
| JP 5 Jet Fuel | mixture | >480 |
| JP 8 Jet Fuel | mixture | >480 |
| Kerosene Distillate | Mixture | >480 |
| Lewisite (L) | 541-25-3 | >480 |
| Light Oil (75% Benzene 25% Diesel oil) | 71-43-2 Mixture | >480 |
| Liquid Petroleum Gas | 74-98-6 | >480 |
| m- Xylene | 108-38-3 | >480 |
| Malathion 50% | 121-75-5 | >480 |
| Maleic Acid | 110-16-7 | >480 |
| Maleic anhydride | 108-31-6 | >480 |
| Malononitrile @ 32 C | 109-77-3 | >480 |
| Methanol | 67-56-1 | >480 |
| Methyl Acetate | 79-20-9 | >480 |
| Methyl Alcohol | 67-56-1 | >480 |
| Methylamine 40% | 74-89-5 | >480 |
| Methyl Benzene | 108-88-3 | >480 |
| Methyl Chloride | 74-87-3 | >480 |
| Methyl Chloroform | 71-55-6 | >480 |
| Methyl Chloroformate | 79-22-1 | >480 |
| Methylene Dichloride | 75-09-2 | >480 |
| Methylene Oxide, 37% | 50-00-0 | >480 |
| Methyl Ethyl Ketone | 78-93-3 | >480 |
| Methyl Iodide | 74-88-4 | >480 |
| Methyl Isobutyl Ketone | 108-10-1 | >480 |
| Methyl isobutyl ketone >95% LIQUID PENETRATION | 108-10-1 | >60 |
| Methyl Methacrylate | 80-62-6 | >480 |
| Methyl Pyrrolidone | 872-50-4 | >480 |
| Methyl Sulfate | 77-78-1 | >480 |
| Methyl tert Butyl Ether | 1634-04-4 | >480 |
| Monochloroacetic Acid, 50% | 79-11-8 | >480 |
| Monochloroethylene | 75-01-04 | >480 |
| Monochlorosulfuric Acid | 7790-94-5 | >480 |
| Motor Fuel | 8006-61-9 | >480 |
| Muriatic Acid | 7647-01-0 | >480 |
| Mustard (HD) | 505-60-2 | >480 |
| N,N-Dimethylformamide | 68-12-2 | >480 |
| n-Butyl Acetate | 123-86-4 | >480 |
| N-Ethylethanamine | 109-89-7 | >480 |
| n-Hexane | 110-54-3 | >480 |
| N-Methyl-2Pyrrolidone | 872-50-4 | >480 |
| n-Pentane | 109-66-0 | >480 |
| Naphtha (full range, reformed) | 68919-37-9 | >480 |
| Nerve agent (VX) | 50782-69-9 | >480 |
| Nitric Acid, 70% | 7697-37-2 | >480 |
| Nitrobenzene | 98-95-3 | >480 |
| Nitrobenzene >95% LIQUID PENETRATION | 98-95-3 | >60 |
| Nitrobenzol | 98-95-3 | >480 |
| Nitrogen Dioxide | 10102-44-0 | >480 |
| Nitrogen Peroxide | 10102-44-0 | >480 |
| o-Cresol | 95-48-7 | >480 |
| o-dimethyl-phosphorodithioate | 121-75-5 | >480 |
| o-Xylene | 95-47-6 | >480 |
| Oleum (27% SO3) | 8014-95-7 | >480 |
| Orthophosphoric Acid | 7664-38-2 | >480 |
| p-Phenylenediamine {PPDA} | 106-50-3 | >480 |
| p-Xylene | 106-42-3 | >480 |
| Pentane | 109-66-0 | >480 |
| Perchloroethylene | 127-18-4 | >480 |
| Phenol @43 C | 108-95-2 | >480 |
| Phenylamine | 62-53-3 | >480 |
| Phenylglycidyl Ether | 122-60-1 | >480 |
| Phenyl Hydride | 71-43-2 | >480 |
| Phenyltrichlorosilane | 98-13-5 | >480 |
| Phosphoric Acid, 85% | 7664-38-2 | >480 |
| Phosphorous Oxychloride | 10025-87-3 | >480 |
| Phosphorus Trichloride | 7719-12-2 | >480 |
| Picoline | 108-99-6 | >480 |
| Potassium Cyanide, 10% | 151-50-8 | >480 |
| Potassium Hydroxide, 45% | 1310-58-3 | >480 |
| Propylene carbonate | 108-32-7 | >480 |
| Propylene Oxide | 75-56-9 | >480 |
| Pyridine | 110-86-1 | >480 |
| Reformate Naphtha | 68919-37-9 | >480 |
| Sarin (GB) | 107-44-8 | >480 |
| Silicon Phenyl Trichloride | 98-13-5 | >480 |
| Sodium Chlorate, 50% | 7775-09-9 | >480 |
| Sodium Chloride Oxide | 7681-52-9 | >480 |
| Sodium Chromate Tetrahydrate, 50% | 10034-82-9 | >480 |
| Sodium Cyanide | 143-33-9 | 480 |
| Sodium Hydroxide, 50% | 1310-73-2 | >480 |
| Sodium Hydroxide, 50% LIQUID PENETRATION | 1310-73-2 | >60 |
| Sodium Hypochlorite, 13% | 7681-52-9 | >480 |
| Sodium hypochlorite 10% w/w LIQUID PENETRATION | 7681-52-9 | >60 |
| Sodium Methylate in Methanol | 124-41-4 | >480 |
| Sodium salt of Hydrocyanic Acid | 143-33-9 | >480 |
| Soman 20 g/m2 | 96-64-0 | >60 |
| Stoddard Solvent | 8052-41-3 | >480 |
| Styrene Monomer | 100-42-5 | >480 |
| Sulfan | 7446-11-9 | >480 |
| Sulfur Dioxide | 7446-09-5 | >480 |
| Sulfur Hexafluoride | 2551-62-4 | >480 |
| Sulfuric Acid, 98% | 7664-93-9 | >480 |
| Sulfuric acid 93.1% w/w LIQUID PENETRATION | 7664-93-9 | >60 |
| Sulfur Trioxide, 21% & Chlorosulfonic Acid 79% | Mixture | >480 |
| Sulfur Trioxide 99% | 7446-11-9 | >480 |
| Tertiary Butyl Hydroperoxide | 75-91-2 | >480 |
| Tetrabory Lam | 2052-49-5 | >480 |
| Tetrachloroethylene | 127-18-4 | >480 |
| Tetrachloroethylene >95% LIQUID PENETRATION | 127-18-4 | >60 |
| Tetrachlorotitanium | 7550-45-0 | >480 |
| Tetrahydrofuran | 109-99-9 | >480 |
| Tetramethylammonium Hydroxide, 25% | 75-59-2 | >480 |
| Thionyl Chloride | 7719-09-7 | >480 |
| Titanium Tetrachloride | 7550-45-0 | >480 |
| Toluene | 108-88-3 | >480 |
| Toluene-2,4-diisocyanate | 584-84-9 | >480 |
| trans-Crotonaldehyde | 123-73-9 | >480 |
| Trichloroethylene | 79-01-6 | >480 |
| Tricresyl Phosphate | 1330-78-5 | >480 |
| Triethylamine | 121-44-8 | >480 |
| Trifluoroacetic Acid | 76-05-1 | >480 |
| Trifluoroborane Dihydrate | 13319-75-0 | >480 |
| Trifluoroethanoic Acid | 76-05-1 | >480 |
| Vinyl Acetate | 108-05-4 | >480 |
| Vinyl Chloride | 75-01-04 | >480 |
| Viral penetration | ASTM F1671 | >60 |
| White Liquor | Mixture | >480 |
| α-Methyl Styrene | 98-83-9 | >480 |
Download Zytron® 500 Vapor Total Encapsulating Suit. (Hazmat Model) Resources
To ensure the highest level of safety and operational readiness, access our comprehensive library of Zytron® 500 Vapor Total Encapsulating Suit. (Hazmat Model) documents. Download the Product Flyer for an overview of performance specifications, review Sizing Info and Shelf Life guidance for compliance and inventory management, and read our official PFAS Statement. These resources are vital tools for Hazmat professionals, procurement teams, and end-users needing detailed product information.
-
Product Flyer
Digital Pressure Test Kit for Gas-Tight Suits
-
Tech Doc
How to Read Kappler Product Numbers: Style Code Guide
-
Product Information
Kappler Garment Shelf Life Guidelines
-
Product Flyer
Kappler Industrial PPE: Chemical, Thermal & FR Protection
-
Product Flyer
Kappler Product Guide
-
Product Flyer
Kappler Protective Apparel for Military & Defense Operations
-
Product Information
Kappler Sizing Information Guide
-
Tech Doc
NFPA Standards Reference Guide for Protective Apparel
-
Product Flyer
Product Overview QR Scan Sheet
-
User Manual
Zytron® & Frontline® Level A Vapor Suit
-
User Manual
Zytron® 300 & 500 Liquid Splash Suit
-
User Manual
Zytron® 500 CBRN & Hazmat Suit User Manual
-
Product Flyer
Zytron® 500 Product Sheet
Zytron® 500 Vapor Total Encapsulating Suit. (Hazmat Model) Videos
Anti-Fog Visor Demonstration
ChemScan® Label Demonstration
Closing a Gas-Tight Zipper Technique
Closing an AquaSeal Zipper Technique
Donning and Doffing a Gas-Tight Suit
Donning and Doffing a LongNeck™ Coverall
Folding and Packing the Zytron® 500
HazMatch® App Demonstration
Pressure Test Kit Demonstration
Pressure Test Kit Self-Test
Pressure Testing a Gas-Tight Garment
Proper Folding and Storage of Encapsulated Level B Suits
Replacing the Pirelli Exhaust Valve
Universal Adapter Replacement and Use
