F5H583-91

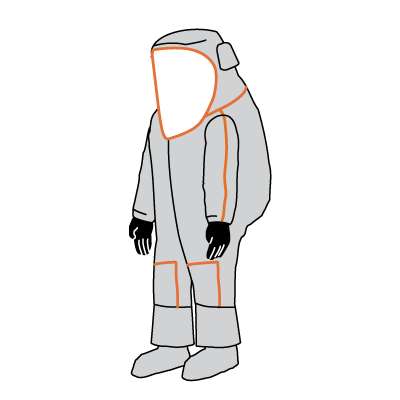

Frontline® 500 NFPA 1990 (1991) Certified Vapor Total Encapsulating Suit
- › Available Sizes: SM/MD, LG/XL, 2X/3X, 4XL
- › Available Colors: Silver
- › Case Quantity: 1 /cs
- › Case Weight: 51 lbs
- › U.S. MSRP: SM/MD: $3,357.96 | LG/XL: $3,357.96 | 2X/3X: $3,693.75 | 4XL: $3,861.64
Frontline® 500 NFPA 1990 (1991) Certified Vapor Total Encapsulating Suit Overview
All Frontline® Styles
Frontline 500
Frontline® 500 NFPA 1990 (1991) Certified Vapor Total Encapsulating Suit Chemical Test Data
Total Chemicals Tested: 193
Sources for all chemical test data are independent laboratories. All tests were performed under laboratory conditions and not under actual use conditions. Tests were performed on material samples, not actual garments. All chemicals tested at 95% and 75° F unless otherwise specified.
All chemical test data shown is “permeation” based on ASTM F739, unless noted as “LIQUID PENETRATION” based on ASTM F903/F1671. Results displayed are in minutes. Select chemicals based on permeation when liquid and vapor protection is required. Select penetration when only liquid protection is required.
| Chemical Name | CAS | Result |
|---|---|---|
| 1,1,1-Trichloroethane | 71-55-6 | >480 |
| 1,2,-Dichlorobenzene | 95-50-1 | >480 |
| 1,2-Dichloroethane | 107-06-2 | >480 |
| 1,2-Dihydroxyethane | 107-21-1 | >480 |
| 1,3-Butadiene | 106-99-0 | >480 |
| 1,3-Dimethylbenzene | 108-38-3 | >480 |
| 1,4-Aminobiphenyl | 92-67-1 | >480 |
| 1,4-Diaminobenzene | 106-50-3 | >480 |
| 1,6-Diisocyanatohexane | 822-06-0 | >480 |
| 1-Butanol | 71-36-3 | >480 |
| 1-Vinyl-2 pyrrolidinone | 88-12-0 | >480 |
| 2-Aminodiphenylamine (2-ADP) | 534-85-0 | >480 |
| 2-Aminoethanol | 141-43-5 | >480 |
| 2-Butanone | 78-93-3 | >480 |
| 2-Chloropropylene Oxide | 106-89-8 | >480 |
| 2-Mercaptoethanol | 60-24-2 | >480 |
| 4-Phenylaniline | 92-67-1 | >480 |
| Acetic Acid, 99% | 64-19-7 | >480 |
| Acetic Anhydride | 108-24-7 | >480 |
| Acetone | 67-64-1 | >480 |
| Acetonitrile | 75-05-8 | >480 |
| Acrolein | 107-02-8 | >480 |
| Acrylonitrile | 107-13-1 | >480 |
| Acryloyl Chloride | 814-68-6 | >480 |
| Aluminum potassium sulfate dodecahydrate | 7784-24-9 | >480 |
| Ammonia, gas | 7664-41-7 | >480 |
| Ammonium Hydroxide, 28% | 1336-21-6 | >480 |
| Aniline | 62-53-3 | >480 |
| Aqua Fortis, 70% | 7697-37-2 | >480 |
| Azabenzene | 110-86-1 | >480 |
| Battery Acid | 7664-93-9 | >480 |
| Benzene | 71-43-2 | >480 |
| Benzyl Chloride | 100-44-7 | >480 |
| Biethylene | 106-99-0 | >480 |
| Bis (2-chloroethyl) Sulfide | 505-60-2 | >480 |
| Black Liquor | Mixture | >480 |
| Boron Trifluoride | 7637-07-2 | >480 |
| Bromine | 7726-95-6 | 80 |
| Butyl Acetate | 123-86-4 | >480 |
| Butyl Alcohol | 71-36-3 | >480 |
| Carbon Bisulfide | 75-15-0 | >480 |
| Carbon Disulfide | 75-15-0 | >480 |
| Carbon Tetrachloride, 99.5% | 56-23-5 | >480 |
| Caustic Soda | 1310-73-2 | >480 |
| Chlorine Gas | 7782-50-5 | >480 |
| Chloroacetic Acid | 79-11-8 | >480 |
| Chloromethane | 74-87-3 | >480 |
| Chlorosulfonic Acid | 7790-94-5 | >480 |
| Chlorovinylarsine Dichloride | 541-25-3 | 240 |
| Chromium Trioxide, 50% | 1333-82-0 | >480 |
| cis-1,2-Dichloroethene | 156-59-2 | 480 |
| Cumene | 98-82-8 | >480 |
| Cumene Hydroperoxide, 80% | 80-15-9 | >480 |
| Cyanomethane | 75-05-8 | >480 |
| Cyclohexanone | 108-94-1 | >480 |
| Dibutyl phthalate | 84-74-2 | >480 |
| Dichloromethane | 75-09-2 | 253 |
| Diesel Fuel Ultra Low Sulfur | Mixture | >480 |
| Diethylamine | 109-89-7 | >480 |
| Diethylene Oxide | 123-91-1 | >480 |
| Diethylethanolamine | 100-37-8 | >480 |
| Dimethyl-Acetamide | 127-19-5 | >480 |
| Dimethylamine | 124-40-3 | >480 |
| Dimethylformamide | 68-12-2 | >480 |
| Dimethyl Ketone | 67-64-1 | >480 |
| Dimethyl Sulfate | 77-78-1 | >480 |
| Dimethyl Sulfide | 75-18-3 | >480 |
| DMAC | 127-19-5 | >480 |
| Epichlorohydrin | 106-89-8 | >480 |
| Ethanoic Acid | 64-19-7 | >480 |
| Ethanoic Anhydride | 108-24-7 | >480 |
| Ethanolamine | 141-43-5 | >480 |
| Ethenyl Benzene | 100-42-5 | >480 |
| Ethyl-S-Dimethylaminoethyl Methylphosphonothiolate | 50782-69-9 | >480 |
| Ethyl Acetate | 141-78-6 | >480 |
| Ethyl Benzene | 100-41-4 | >480 |
| Ethyl Chloroformate | 541-41-3 | >480 |
| Ethylene Dichloride | 107-06-2 | >480 |
| Ethylene Glycol | 107-21-1 | >480 |
| Ethylene Oxide | 75-21-8 | >480 |
| Ethyl Ethanoate | 141-78-6 | >480 |
| Ferric Chloride, 50% | 7705-8-0 | >480 |
| Gasoline | 8006-61-9 | >480 |
| Gluteraldehyde, 25% | 111-30-8 | >480 |
| Hexamethylene-1,6-diisocyanate | 822-06-0 | >480 |
| Hexane | 110-54-3 | >480 |
| Hydrazine, 64% | 302-01-2 | >480 |
| Hydrazine Hydrate (contains 64% hydrazine) | 10217-52-4 | >480 |
| Hydriodic acid, 56% | 10034-85-2 | >480 |
| Hydrochloric Acid, 37% | 7647-01-0 | >480 |
| Hydrofluoric Acid 48% | 7664-39-3 | >480 |
| Hydrogen Chloride gas | 7647-01-0 | >480 |
| Hydrogen Fluoride Gas 99% | 7664-39-3 | >480 |
| Hydrogen Peroxide, 30% | 7722-84-1 | >480 |
| Hydrogen Sulfide 100% Vapor | 7783-06-4 | >480 |
| Iodomethane | 74-88-4 | >480 |
| Isophorone Diamine {IPDA} | 2855-13-2 | >480 |
| Isopropenyl Benzene | 98-83-9 | >480 |
| Isopropyl Alcohol | 67-63-0 | >480 |
| Isopropylamine | 75-31-0 | >480 |
| Isopropyl Benzene | 98-82-8 | >480 |
| Isopropyl Methanefluorophosphonate | 107-44-8 | >480 |
| JP 5 Jet Fuel | mixture | >480 |
| JP 8 Jet Fuel | mixture | >480 |
| Kerosene Distillate | Mixture | >480 |
| Lewisite (L) | 541-25-3 | 240 |
| Light Oil (75% Benzene 25% Diesel oil) | 71-43-2 Mixture | >480 |
| m- Xylene | 108-38-3 | >480 |
| Malononitrile @ 32 C | 109-77-3 | >480 |
| Methanol | 67-56-1 | >480 |
| Methyl Acetate | 79-20-9 | >480 |
| Methyl Alcohol | 67-56-1 | >480 |
| Methylamine 40% | 74-89-5 | >480 |
| Methyl Benzene | 108-88-3 | >480 |
| Methyl Chloride | 74-87-3 | >480 |
| Methyl Chloroform | 71-55-6 | >480 |
| Methyl Chloroformate | 79-22-1 | >480 |
| Methyl Ethyl Ketone | 78-93-3 | >480 |
| Methyl Hydrazine 98% | 60-34-4 | >480 |
| Methyl Iodide | 74-88-4 | >480 |
| Methyl Isobutyl Ketone | 108-10-1 | >480 |
| Methyl Methacrylate | 80-62-6 | >480 |
| Methyl Pyrrolidone | 872-50-4 | >480 |
| Methyl Sulfate | 77-78-1 | >480 |
| Methyl tert Butyl Ether | 1634-04-4 | >480 |
| Monochloroacetic Acid, 50% | 79-11-8 | >480 |
| Monochloroethylene | 75-01-04 | >480 |
| Monochlorosulfuric Acid | 7790-94-5 | >480 |
| Motor Fuel | 8006-61-9 | >480 |
| Muriatic Acid | 7647-01-0 | >480 |
| Mustard (HD) | 505-60-2 | >480 |
| n-Butyl Acetate | 123-86-4 | >480 |
| N-Ethylethanamine | 109-89-7 | >480 |
| n-Hexane | 110-54-3 | >480 |
| N-Methyl-2Pyrrolidone | 872-50-4 | >480 |
| n-Pentane | 109-66-0 | >480 |
| Naphtha (full range, reformed) | 68919-37-9 | >480 |
| Nerve agent (VX) | 50782-69-9 | >480 |
| Nitric Acid, 70% | 7697-37-2 | >480 |
| Nitric Acid 99% | 7697-37-2 | >480 |
| Nitrobenzene | 98-95-3 | >480 |
| Nitrobenzol | 98-95-3 | >480 |
| Nitrogen Dioxide | 10102-44-0 | >480 |
| Nitrogen Peroxide | 10102-44-0 | >480 |
| o-Cresol | 95-48-7 | >480 |
| o-Xylene | 95-47-6 | >480 |
| Octane | 111-65-9 | >480 |
| Oleum (27% SO3) | 8014-95-7 | >480 |
| Orthophosphoric Acid | 7664-38-2 | >480 |
| p-Phenylenediamine {PPDA} | 106-50-3 | >480 |
| p-Xylene | 106-42-3 | >480 |
| Pentane | 109-66-0 | >480 |
| Perchloroethylene | 127-18-4 | >480 |
| Phenylamine | 62-53-3 | >480 |
| Phenyl Hydride | 71-43-2 | >480 |
| Phosphoric Acid, 85% | 7664-38-2 | >480 |
| Phosphorous Oxychloride | 10025-87-3 | >480 |
| Picoline | 108-99-6 | >480 |
| Potassium Hydroxide, 45% | 1310-58-3 | >480 |
| Propylene carbonate | 108-32-7 | >480 |
| Propylene Oxide | 75-56-9 | >480 |
| Pyridine | 110-86-1 | >480 |
| Reformate Naphtha | 68919-37-9 | >480 |
| Sarin (GB) | 107-44-8 | >480 |
| Silicon Tetracholride | 10026-04-7 | >480 |
| Sodium Chlorate, 50% | 7775-09-9 | >480 |
| Sodium Chloride Oxide | 7681-52-9 | >480 |
| Sodium Chromate Tetrahydrate, 50% | 10034-82-9 | >480 |
| Sodium Hydroxide, 50% | 1310-73-2 | >480 |
| Sodium Hypochlorite, 13% | 7681-52-9 | >480 |
| Sodium Methylate in Methanol | 124-41-4 | >480 |
| Soman 20 g/m2 | 96-64-0 | >60 |
| Styrene Monomer | 100-42-5 | >480 |
| Sulfan | 7446-11-9 | >480 |
| Sulfur Hexafluoride | 2551-62-4 | >480 |
| Sulfuric Acid, 98% | 7664-93-9 | >480 |
| Sulfur Trioxide 99% | 7446-11-9 | >480 |
| Tertiary Butyl Hydroperoxide | 75-91-2 | >480 |
| Tetrabory Lam | 2052-49-5 | >480 |
| Tetrachloroethylene | 127-18-4 | >480 |
| Tetrachlorotitanium | 7550-45-0 | >480 |
| Tetrahydrofuran | 109-99-9 | >480 |
| Tetramethylammonium Hydroxide, 25% | 75-59-2 | >480 |
| Titanium Tetrachloride | 7550-45-0 | >480 |
| Toluene | 108-88-3 | >480 |
| Toluene-2,4-diisocyanate | 584-84-9 | >480 |
| Trichloroethylene | 79-01-6 | >480 |
| Triethylamine | 121-44-8 | >480 |
| Trifluoroacetic Acid | 76-05-1 | >480 |
| Trifluoroethanoic Acid | 76-05-1 | >480 |
| Vinyl Acetate | 108-05-4 | >480 |
| Vinyl Chloride | 75-01-04 | >480 |
| α-Methyl Styrene | 98-83-9 | >480 |
