Zytron 500
Chemical Protection
Zytron 500 is top of the class – and the classic responder choice for hazmat and other demanding situations.
It's tough, built for mobility, and based on patented technology that created the first material to survive eight full hours against the ASTM F1001 Test Battery with no breakthrough.
With that kind of Kappler heritage built into the fabric, it's no wonder that responders around the world trust Z500 garments for ultra-demanding Level A and Level B applications. Available in coveralls and a range of total encapsulating suits.
Zytron 500 Style Details
- Greater than 8-hour holdout against hundreds of chemicals, with proven holdout against Chemical Warfare Agents (CWA).
- NFPA 1994 Class 2 - 2012 Edition style available.
- Available in a wide variety of total encapsulating suits and coverall styles.
- Available in hi-viz orange and charcoal gray.
- New patent-pending AntiFog Expanded-View Visor System (view side-by-side comparison photos below).
- Applications: hazmat response, chemical handling, Refueling operations, Petro-chemical refinery operations, hazardous material clean-up and remediation, CWA incineration / remediation / disposal
AntiFog Visor System
View a video showcasing the benefits of Kappler’s new larger AntiFog Visor System. (note: old vs. new comparison shows Frontline® garment)
Zytron 500 Key Benefits
- New larger AntiFog Visor System is standard on all Zytron 500 gas-tight styles except Z5H550 and 580 series.
- All Hazmat styles include 2N1® Glove System which eliminates the problem of inner glove inversion.
- Hazmat style include seams that are sewn then double heat sealed/taped.
- Softer pliable fabric enhances comfort for extended wear applications.
ChemScan® labels – quick, accurate and only from Kappler.
Scan the label with your phone’s QR reader for a complete list of chemicals tested against your garment’s protective fabric.
Zytron 500 Style Options
Z5H417
Zipper Front, Collar, Elastic Wrists and Ankles.
Heat Sealed/Taped Seam| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 3/cs |
| Weight: | 7 lb / 3.2 kg |

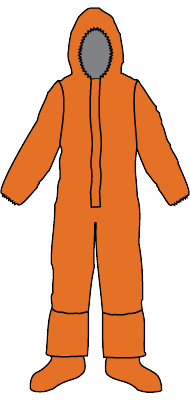

Z5H426
Zipper Front, LongNeck™ design with Extended Zipper Closure, Attached Hood, Elastic Wrists and Face Opening, Attached Sock Booties with Splash Guards.
Heat Sealed/Taped Seam| CE Type 3 | |
| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 3/cs |
| Weight: | 8 lb / 3.6 kg |

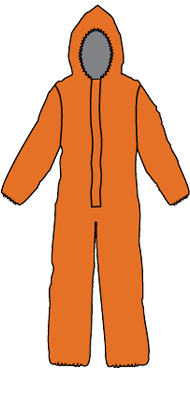

Z5H428
Zipper Front, LongNeck™ design with Extended Zipper Closure, Attached Hood, Elastic Wrists, Ankles and Face Opening.
Heat Sealed/Taped Seam| CE Type 3 | |
| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 3/cs |
| Weight: | 7 lb / 3.2 kg |

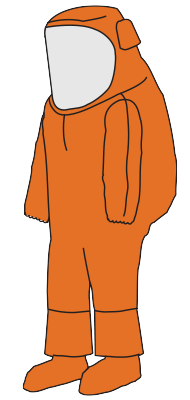

Z5H573
Rear Entry, Expanded Back, Expanded View AntiFog Visor System, 1 Exhaust Port, Elastic Wrists, Attached Sock Booties with Splash Guards, Single Heat Sealed/Taped Seams, Double Storm Flaps with Hook and Loop Fasteners & Cloth Zipper.
Heat Sealed/Taped Seam| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 7 lb / 3.2 kg |
Z5H373
Rear Entry, Flat Back, Expanded View AntiFog Visor System, 1 Exhaust Port, Elastic Wrists, Attached Sock Booties with Splash Guards, Single Heat Sealed/Taped Seams, Double Storm Flaps with Hook and Loop Fasteners, Cloth Zipper & Side Air Inlet.
Heat Sealed/Taped Seam| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 7 lb / 3.2 kg |

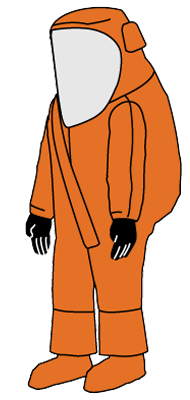

Z5H552
Front Entry, Expanded Back, Expanded View AntiFog Visor System, 2 Exhaust Valves, 48” Gas-Tight PVC Zipper, Double Storm Flaps with Hook and Loop Fasteners, Attached Sock Booties with Splash Guards, Heat Sealed/Taped Seams & Field Replaceable Butyl Gloves.
Heat Sealed/Taped Seam| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 9 lb / 4.1 kg |

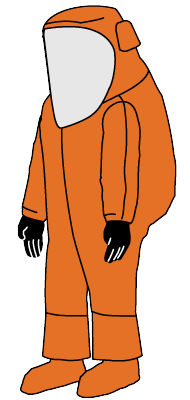

Z5H553
Rear Entry, Expanded Back, Expanded View AntiFog Visor System, 2 Exhaust Valves, 48” Gas-Tight PVC Zipper, Double Storm Flaps with Hook and Loop Fasteners, Attached Sock Booties with Splash Guards, Heat Sealed/Taped Seams & Field Replaceable Butyl Gloves.
Heat Sealed/Taped Seam| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 9 lb / 4.1 kg |
Z5H352
Front Entry, Flat Back, Expanded View AntiFog Visor System, 2 Exhaust Valves, 48” Gas-Tight PVC Zipper, Double Storm Flaps with Hook and Loop Fasteners, Attached Sock Booties with Splash Guards, Heat Sealed/Taped Seams & Field Replaceable Butyl Gloves.
Heat Sealed/Taped SeamMust specify pass-thru option.
| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 9 lb / 4.1 kg |

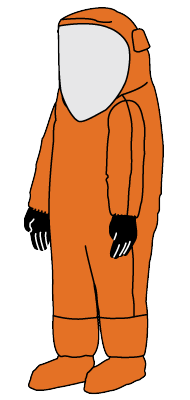

Z5H353
Rear Entry, Flat Back, Expanded View AntiFog Visor System, 2 Exhaust Valves, 48” Gas-Tight PVC Zipper, Double Storm Flaps with Hook and Loop Fasteners, Attached Sock Booties with Splash Guards, Heat Sealed/Taped Seams & Field Replaceable Butyl Gloves.
Heat Sealed/Taped SeamMust specify pass-thru option.
| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 9 lb / 4.1 kg |

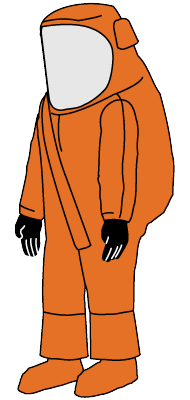

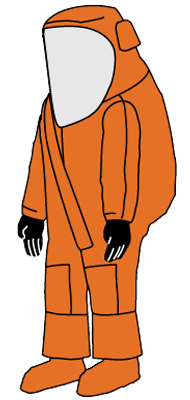

Z5H582
HazMat Front Entry, Expanded Back, Expanded View AntiFog Visor System, 2 Exhaust Valves, 48” Gas-Tight PVC Zipper, Double Storm Flaps with Hook and Loop Fasteners, Attached Sock Booties with Splash Guards, Double Sealed Seams, Knee Reinforcements & 2N1® Glove System.
Heat Sealed/Taped Seam| CE Type 1a | |
| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 9 lb / 4.1 kg |

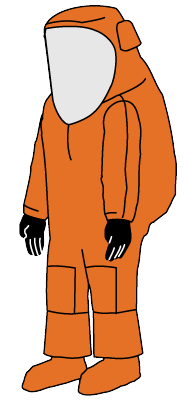

Z5H583
HazMat Rear Entry, Expanded Back, Expanded View AntiFog Visor System, 2 Exhaust Valves, 48” Gas-Tight PVC Zipper, Double Storm Flaps with Hook and Loop Fasteners, Attached Sock Booties with Splash Guards, Double Sealed Seams, Knee Reinforcements & 2N1® Glove System.
Heat Sealed/Taped Seam| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 9 lb / 4.1 kg |
Z5S555
Front Entry, Expanded Back, Large PVC Visor, 1 Exhaust Port, 48” Zipper, Storm Flap with Hook and Loop, Fasteners, Attached Sock Booties with Splash Guards, Serged Zytron 200 Seams & Sewn On PVC Gloves.
Serged Seam| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 7 lb / 3.2 kg |
Z5S556
Rear Entry, Expanded Back, Large PVC Visor, 1 Exhaust Port, 48” Zipper, Storm Flap with Hook and Loop, Fasteners, Attached Sock Booties with Splash Guards, Serged Zytron 200 Seams & Sewn On PVC Gloves.
Serged Seam| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 7 lb / 3.2 kg |
Z5HTN-C2
Vapor Total Encapsulating Suit, Front Entry with Expanded Back, Double Heat Sealed/Taped Seams, Large AntiFog Visor System, 2 Exhaust Valves, 48” Gas-Tight PVC Zipper, Double Storm Flaps with Hook and Loop Fasteners, Attached Sock Booties with Splash Guards, Field Replaceable 2N1® Glove System and Removable Knitted Kevlar Overgloves.
Heat Sealed/Taped Seam| Size: | XS-5X |
| Color: | Orange/Charcoal |
| Quantity: | 1/cs |
| Weight: | 9 lb / 4.1 kg |
Learn More About NFPA
Zytron 500 Chemical Test Data
| STM F1001 Chemical Test Battery* | |
|---|---|
| Chemical | Minutes |
| Acetone | >480 |
| Acetonitrile | >480 |
| Carbon Disulfide | >480 |
| Dichloromethane | >480 |
| Diethylamine | >480 |
| Dimethylformamide | >480 |
| Ethyl Acetate | >480 |
| n - Hexane | >480 |
| Methyl Alcohol | >480 |
| Nitrobenzene | >480 |
| Sodium Hydroxide | >480 |
| Sulfuric Acid | >480 |
| Tetrachloroethylene | >480 |
| Tetrahydrofuran | >480 |
| Toluene | >480 |
| Gases | |
| Ammonia Gas | >480 |
| 1,3 Butadiene Gas | >480 |
| Chlorine Gas | >480 |
| Ethylene Oxide Gas | >480 |
| Hydrogen Chloride Gas | >480 |
| Methyl Chloride Gas | >480 |
| Chemical Warfare Agent Data** | ||
|---|---|---|
| Chemical Agent | Minutes | Criteria |
| Bis (2-chloroethyl) sulfide (Mustard:HD) | >480 | 4.0 ug/cm2 |
| Isopropyl methylfluorophosphonate (Sarin:GB) | >480 | 1.25 ug/cm2 |
| Chlorovinyl arsinedichloride (Lewisite:L) | >480 | 4.0 ug/cm2 |
| O-ethyl S-(2-diisopropylaminoethyl) methylphosphonothiolate (Nerve:VX) | >480 | 1.25 ug/cm2 |
| Typical Physical Properties | |
|---|---|
| Test Method | Result |
| Grab Tensile Strength MD* ASTM D751(lbs/N) | 120 / 534 |
| Grab Tensile Strength CD* ASTM D751(lbs/N) | 121 / 538 |
| Tear Resistance Trapezoid MD*(lbs/N) method details below** | 35 / 156 |
| Tear Resistance Trapezoid CD*(lbs/N) method details below** | 37 / 168 |
| Ball Burst ASTM D3787 (lbs/N) | 128 / 569 |
| Flammability Resistance ASTM F1358 | N/A |
| *MD - Machine Direction, CD - Cross Direction **ASTM D1117 (Zytron 100, 200) ASTM D5587 (Zytron 300, 400, 500) ASTM D571 (Frontline 300, 500) |
|
* Industrial chemical testing was conducted in accordance with ASTM F 739 with normalized breakthrough times reported in minutes.
Note: These tests were performed in accordance with ASTM standards by independent laboratories. This data is derived from tests performed on material samples only, not finished garments.
** Chemical Warfare Agent testing was conducted in accordance with MIL-STD-282 and/or NFPA 1994-2001 with breakthrough times reported based on total cumulative permeation.
Need to see all the chemicals tested against the Z500 Fabric?
View All Chemicals
Check HazMatch® For Complete Chemical Test Results.
The details shown here represent only a fraction of the chemicals tested against Kappler fabrics – a list that’s constantly being expanded. The latest list of chemicals in the Kappler database is always available via HazMatch – get the mobile app or use the online application here. If you don’t see your specific chemical, click here for details on Kappler’s free testing program.
View HazMatch Free Testing Program
